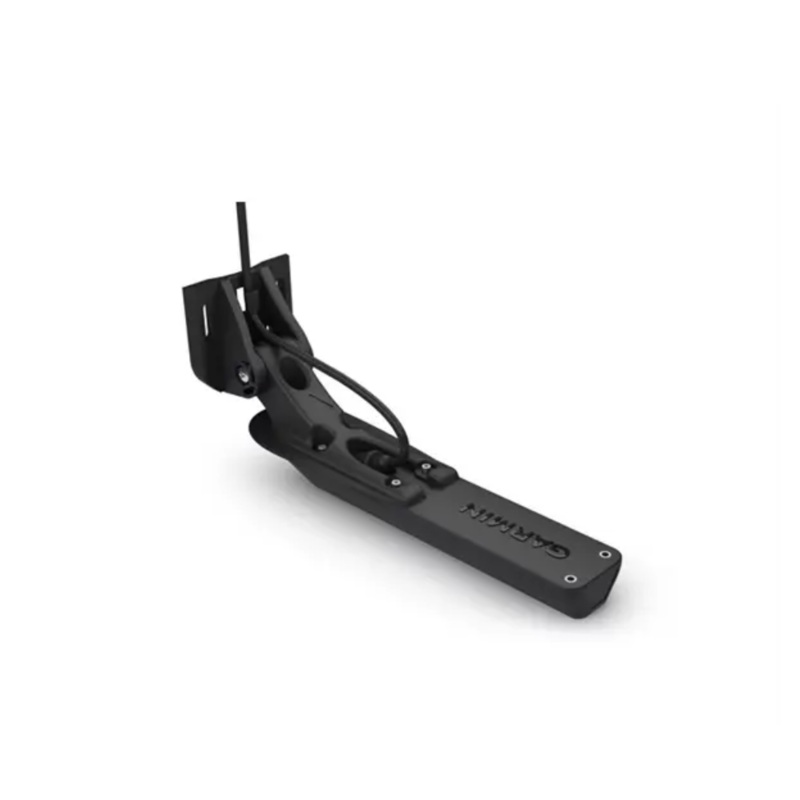

Garmin GT34UHD-TM 12 Pin Transducer (Special Order)

Model Number: 010-12776-00

Add stunningly clear Ultra High-Definition ClearV and Ultra High-Definition SideV scanning sonar images to your compatible chartplotter. Plug directly into your 8600xsv or ECHOMAP Ultra series chartplotter or use the GCV 20 sonar module to display on other compatible chartplotters. It includes 3 arrays, including a downward-facing element, with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz).

Ultra High-Definition ClearV Scanning

This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.

Ultra High-Definition SideV Scanning

This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.

Specifications

General

FREQUENCY

Ultra High-Definition ClearV: 800 kHz (760-880 kHz)

Ultra High-Definition SideV: 1,200 kHz (1,060-1,170 kHz)

POWER

500 W

BEAMWIDTH

ClearV: 0.76×46 @ 800 kHz

SideV: 0.44×55 @ 1,200 kHz

MAXIMUM DEPTH

Depth and Temperature

NUMBER OF PINS

12-pin

CABLE LENGTH

20 ft.

SUPPORTED DEADRISE/TRANSOM ANGLES

0-70 degree transom

In The Box

• GT34UHD-TM transducer

• Transom mountTransom mount

• Trolling motor mount

• Documentation
