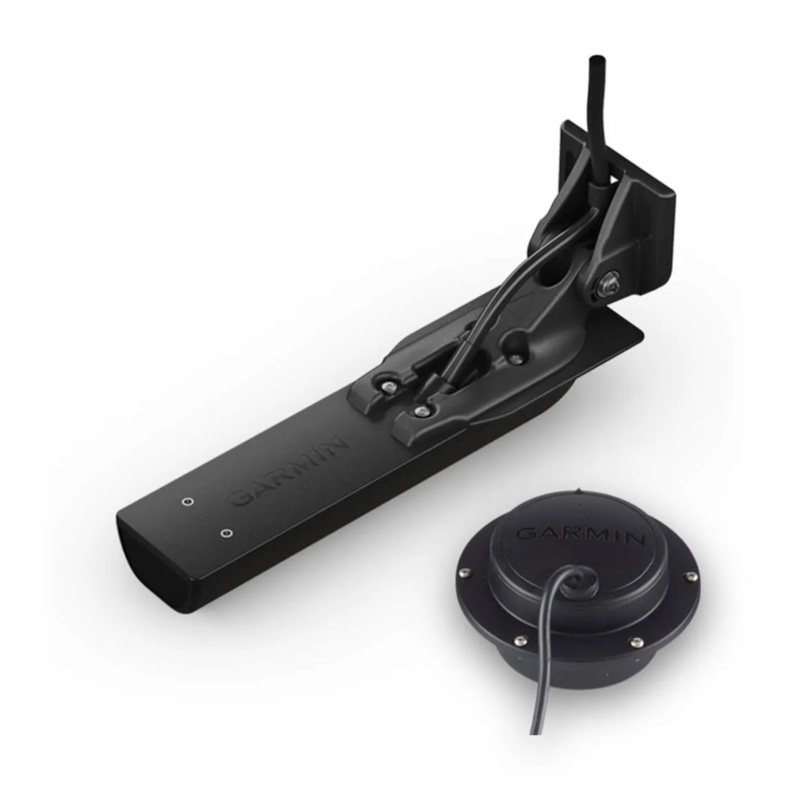

Garmin GT36-TM and GT15M-IH Transducer Bundle

Perfect for the coastal and offshore fisherman who wants CHIRP traditional sonar and CHIRP ClearV and CHIRP SideV scanning sonar, these bundles consistently display clear and crisp fish arches with superior target separation as well as clear definition of objects, structure and fish that pass below and to the side of the boat.

These bundles include the GT36-TM transom mount transducer which offers ultimate versatility, featuring Ultra High-Definition ClearV and SideV scanning sonars for crystal-clear images of fish and structure, so you can spend more time catching fish. Both bundles help you maintain accurate depth readings at high speed, are intended for boats with fiberglass hulls, and include the y-cable required for installing both transducers.

• Choose the bundle with the GT15M-IH in-hull transducer, featuring mid-band CHIRP traditional sonar, if you have a boat with a fiberglass hull and a deadrise from 0 to 25
• Choose the bundle with the GT8HW-IH transducer, featuring high-wide CHIRP traditional sonar, if you have a boat with a fiberglass hull and a deadrise of 0 to 6

What’s in the box:

• GT36UHD-TM transducer with 12-pin connector
  • 25 fttransducer cable
  • Transom mount
  • Trolling motor mount
  • Mounting hardware
  • Documentation
• GT15M-IH transducer with 8-pin connector
  • 20 fttransducer cable
  • 4 plastic in-hull tanks
  • Documentation
• Y-cable (12-pin and 8-pin transducer to 12-pin sounder adapter cable)

TRANSDUCER FREQUENCY ClearV/SideV CHIRP 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000kHz(940-1100) TRANSDUCER POWER ClearV/SideV 500 W TRANSDUCER BEAMWIDTH ClearV 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideV 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz TRANSDUCER MAXIMUM DEPTH ClearV: 400 ft; SideV: 500 ft TRANSDUCER CABLE LENGTH 25 ft TRANSDUCER DEPTH/SPEED/TEMPERATURE depth and temperature TRANSDUCER NUMBER OF PINS 12 TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES 0-70 degree transom

• GT36-TM transducer dimensions (without mount): 218.5 mm x 51.8 mm x 27.7 mm
